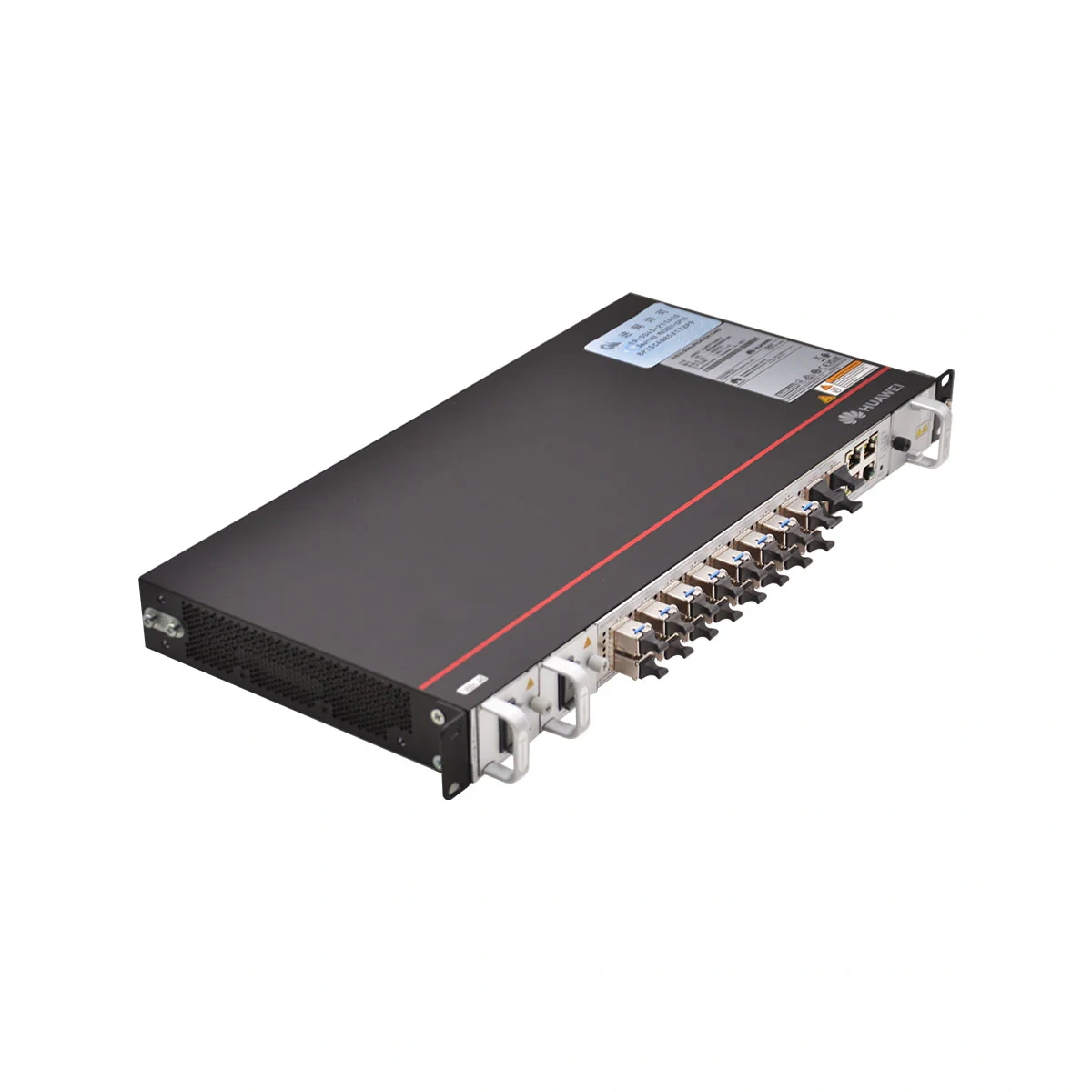

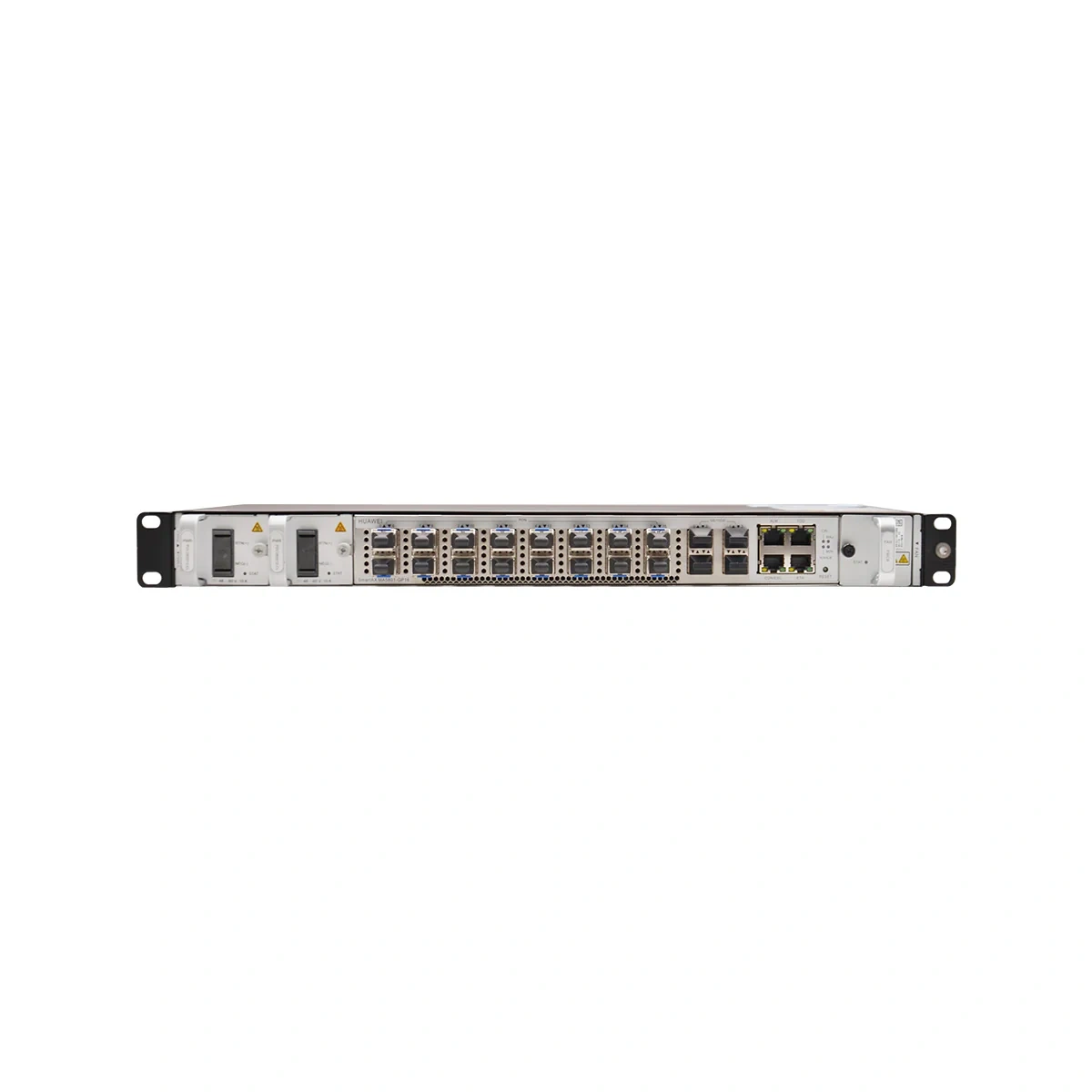

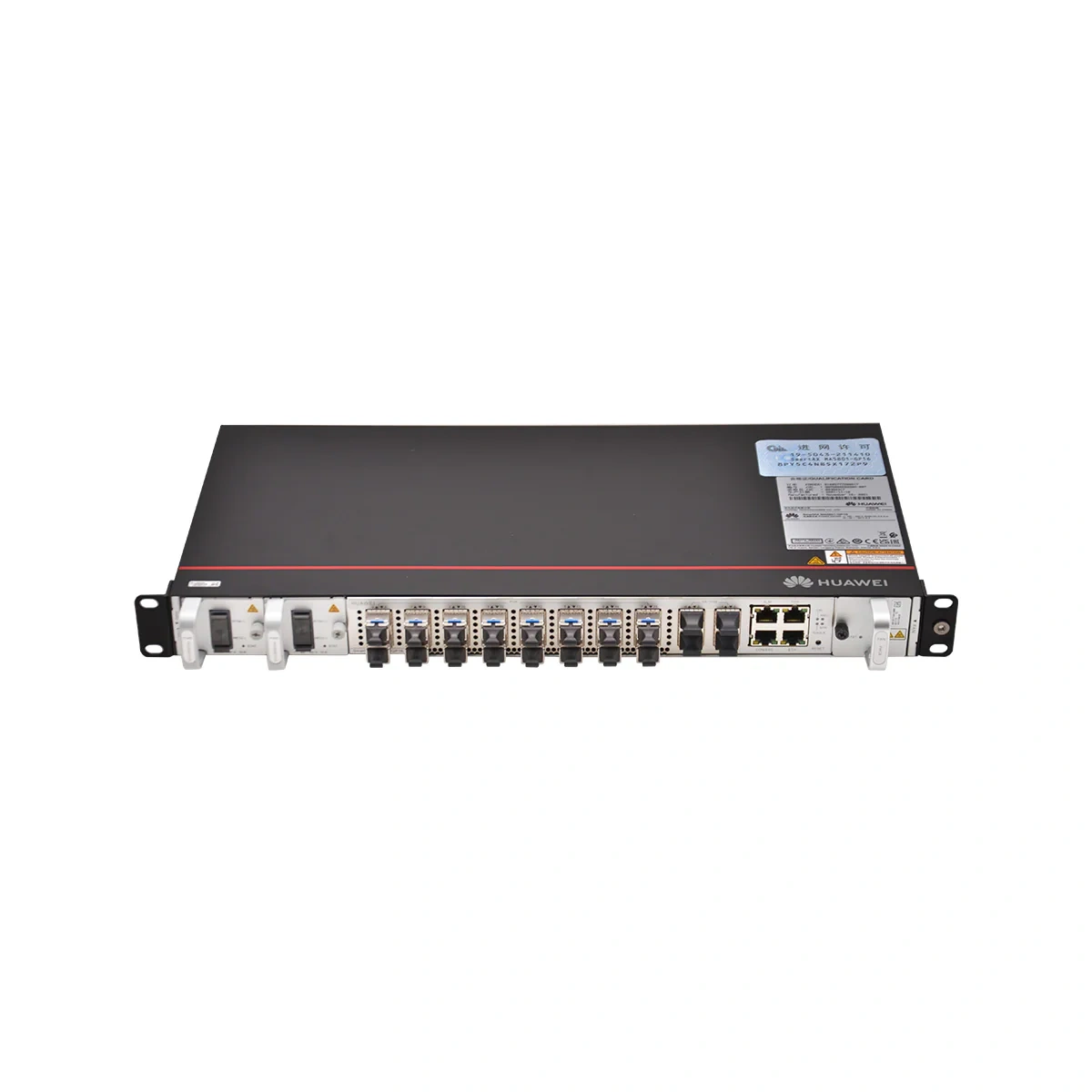

Product Features
- High Density: 16 GPON ports for user access.
- High-Speed Uplinks: 4 x 10GE/GE optical upstream ports.
- Compact Design: 1U height, lightweight (under 5kg), suitable for various deployments.
- Flexible Power: Supports dual AC or DC power modules for high reliability.
- Wide Operating Temp: Works in harsh environments (e.g., -40°C to +65°C).
- Easy Deployment: Pole, wall, or rack mountable; supports rapid installation.
Compatible ONTs
| Item |
Description |
| HG8310M |
1GE |
| EG8120L |
1GE+1FE+1TEL |
| HG8321R |
1GE+1FE+1TEL |
| HG8321V |
1GE+1FE+1TEL+CATV(12V) |
| HG8546M |
1GE+3FE+1USB+1TEL+WIFI(5dBi) |
| EG8141A5 |
1GE+3FE+1USB+1TEL+WIFI(5dBi) |
| EG8247H5 |
1GE+3FE+1USB+1TEL+CATV(5V)+WIFI(5dBi) |
| EG8143A5 |
1GE+3FE+1USB+1TEL+CATV(5V)+WIFI(5dBi) |
| HG8247H5 |
1GE+3FE+1TEL+1USB+CATV(12V)+WIFI(5dBi) |
| EG8145V5 |
4GE+1TEL+1USB+2.4/5G WIFI(5dBi) |
| EG8247W5 |
4GE+1TEL+2USB+CATV+2.4/5G WIFI(5dBi) 4Antennas |
| EG8147X6 |
4GE+USB+CATV+2.4/5G WIFI6 AX3000 (5dBi) |
| HG8245Q2 |
4GE+1TEL+2USB+2.4/5G WIFI |
| EG8145X6 |
4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) |
| HN8145X6 |
10GPON 4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) |
| HN8346V5 |
10GPON 4GE+1TEL+2USB+2.4/5G WIFI (5dBi) |
| K662C |
ONT/Edge Router with 1GE+3GE+2.4G/5GHz Wi-Fi6 |
Application Scenarios & Real-World Cases
Spanish operator Movistar deployed 220 MA5801-GP16-H2 units to upgrade broadband for 3,520 households across 44 residential MDUs in suburban Madrid. Each device aggregated 16 EG8145V6 user ONTs (per floor), with dual 10GE uplinks connecting to the regional MA5800-X15 OLT. The dual power design prevented outages during local grid fluctuations, while QoS ensured smooth 4K IPTV for families. Post-deployment, user complaint rates dropped by 72%, and 85% of households upgraded to 500Mbps plans—driving operator revenue growth.
Canadian operator Rogers used 90 MA5801-GP16-H2 devices to serve 1,440 SMEs (retail stores, tech startups) in Toronto’s business parks. Each device’s VLAN isolation separated traffic between competing SMEs, and 10GE uplinks supported cloud POS systems and video conferencing. The 1U design fit into small SME equipment closets, and remote management reduced on-site visits by 65%. Network downtime fell from 3 hours/week to <0.2 hours/week, boosting SME operational efficiency.
Downloadable resources
Technical Specifications
| Huawei MA5801-GP16-H2 OLT Datasheet |
| Switching capacity of the system |
140 Gbit/s |
| MAC address |
32768 |
| Access ONT |
1024 |
| IPv4 routing table |
8192 |
| IPv6 routing table |
4096 |
| ARP table |
16384 |
| Bit error rate (BER) in full load |
A BER smaller than 10 e-10 for a port that transmits data in full load |
| Upstream ports |
4 GE/10GE |
| Service ports |
16 GPON |
Dimensions
(W x D x H) (mm) |
1U height
Excluding mounting ears: 442 x 220 x 43.6
Including IEC mounting ears: 482.6 x 220 x 43.6
Including ETSI mounting ears: 531 x 220 x 43.6
|
| Maximum weight(including mounting brackets) |
5 kg |
| Technical specification |
| Maximum input current |
DC power supply: 6 A
AC power supply: 2.5 A
|
| Working voltage range |
DC power supply: –38.4 V to –72 V
AC power supply: 100 V to 240 V
|
| Ambient temperature |
–40°C to +65°C
The device can start up at a lowest temperature of –25°C.
NOTE: The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack.
|
| Ambient humidity |
5% RH to 95% RH |
FAQ
Q: How many ONTs can the MA5801-GP16-H2 support?
A: It supports up to 1024 ONTs, making it suitable for medium-scale residential or enterprise deployments.
Q: What power supply options are available?
A: Dual backup AC (100-240V) or DC (-38.4V to -72V) power supplies—AC and DC modules are incompatible.
Q: What is the operating temperature range?
A: It operates from -40°C to +65°C (starts at -25°C) and withstands 5%-95% RH, ideal for harsh outdoor/indoor environments.
Q: Does MF-Telecom provide genuine Huawei hardware?
A: Absolutely—we supply authentic Huawei MA5801-GP16-H2 units with manufacturer-backed reliability and MF-Telecom’s global logistics support.
Q: What is the after-sales service period?
A: We provide a one-year warranty and technical support.
