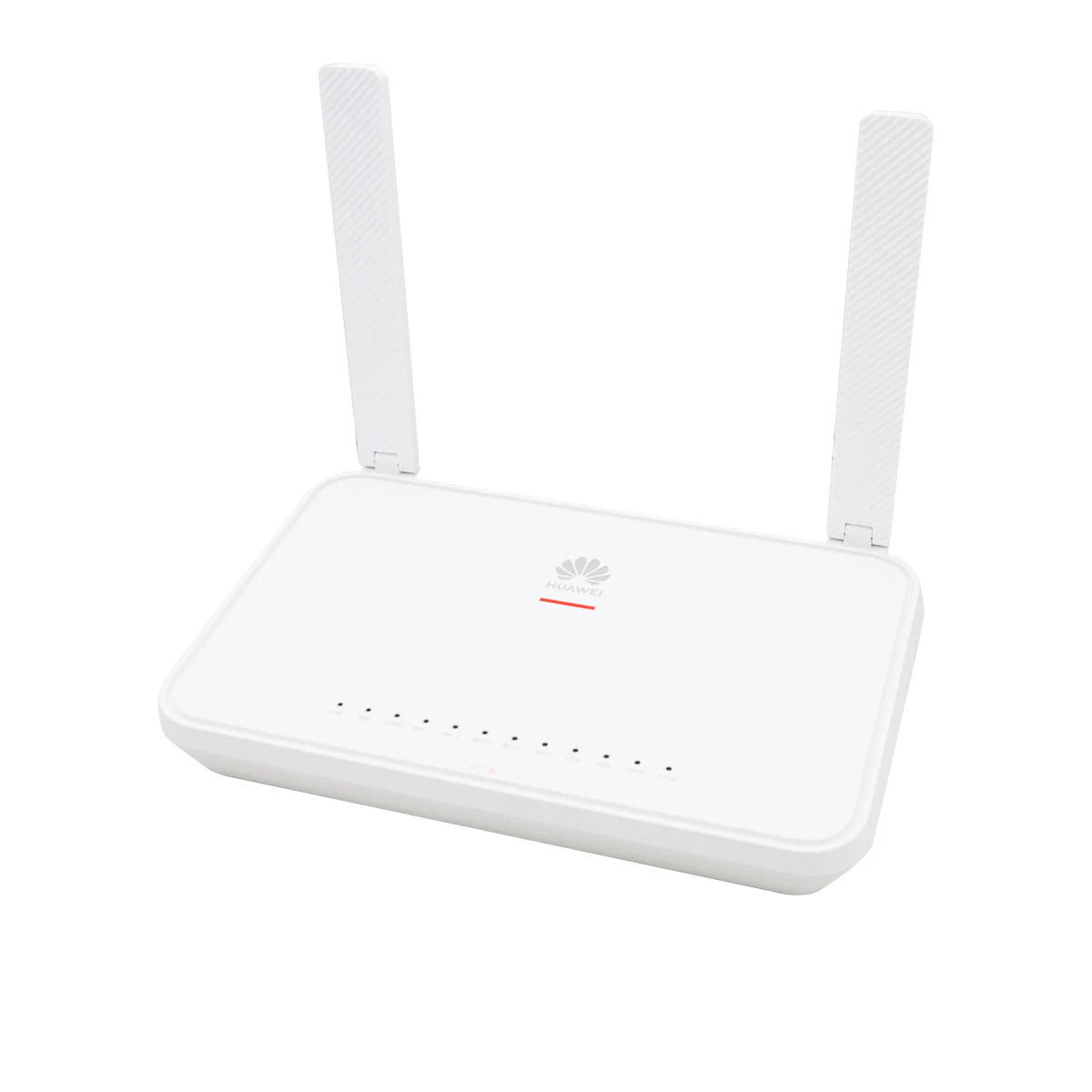

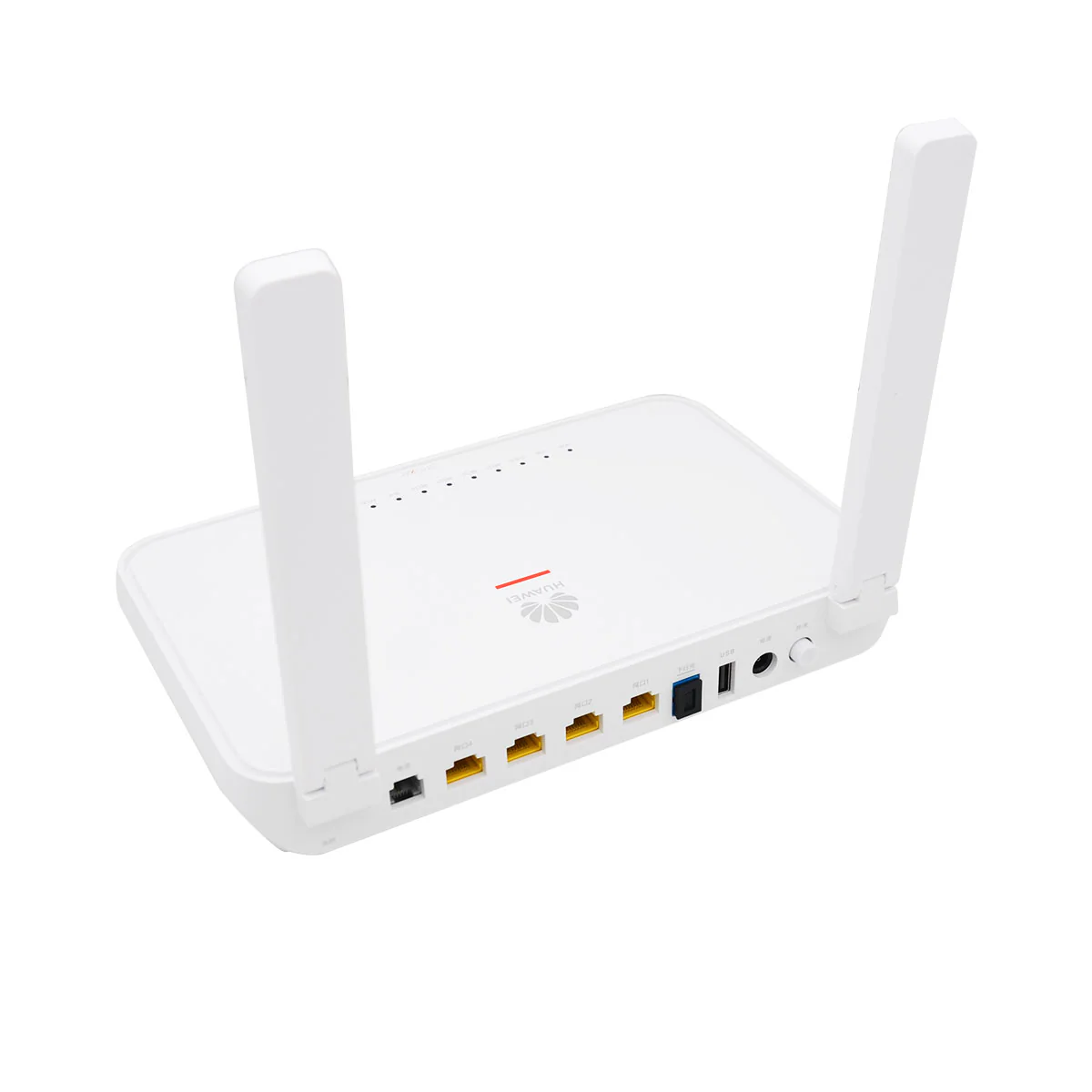

OptiXstar HN8145XR is XG-PON Asymmetric 10G GPON WiFi 6 routing-type ONT, matched with slave ONT K662d to provide Fiber to the Room (FTTR) solution.
FTTR is the innovative next-generation home networking solution. This solution uses fibers that feature small size, light weight, ultra-long service life, anti-EMI, and unlimited bandwidth evolution. It solves the last-meter coverage problem of home networks and provides a new choice for home networking.
The Fiber to the Room (FTTR) all-optical Wi-Fi solution directly extends optical fibers to each room, achieving gigabit coverage everywhere at home.
NOTE: The main FTTR can be placed on a horizontal table or mounted on a wall. Other installation methods (such as hanging on the ceiling) are prohibited!
The HN8145XR is configured by default as XG-PON uplink. If LAN uplink is required, engineer needs to log in to the management page and switch the uplink mode to LAN uplink.
| Item | Parameters |
| NNI | XGPON; LAN uplink (SC/UPC) |
| UNI | 4GE+1TEL+2USB+2.4/5G WIFI 6 (SC/UPC) |
|
Fiber optic port |
Connect to the home optical cable and support XG-PON asymmetric uplink access |
|
XG-PON |
Class N1/N2a |
| WLAN | 2×2 MIMO（2.4G&5G） |
| IEEE 802.11 ax (2.4G&5G) | |
| WMM(Wi-Fi Multi Media) | |
| Antenna gain: 5 dBi | |
| Air interface rate: 574 Mbps (2.4GHz)，2402 Mbps (5GHz) | |
| Function | Work as the main FTTR to realize the full optical home |
| O&M | OMCI/OAM/Web UI/TR069 Variable length OMCI |
| Dimensions | 240mm x 151mm x 40mm |
| (length x width x height) | |
| Weight | About 400 g |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Storage | 256MB Flash，512MB RAM |
| Max. power consumption | 20 W |
| Power specifications | Power adapter input: 170 ～ 240 V AC，50/60 Hz |
| System power supply: 12V DC, 2 A |
