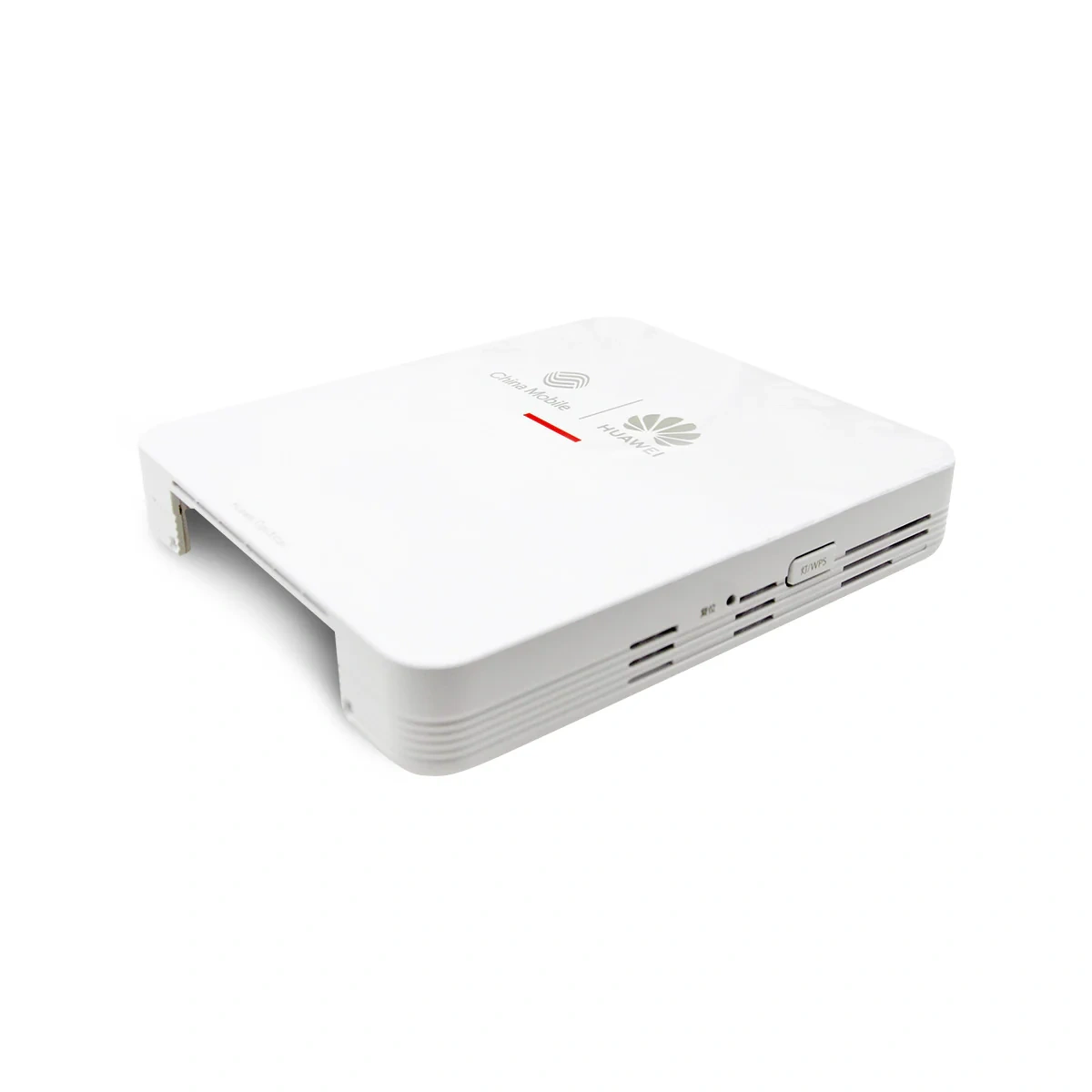

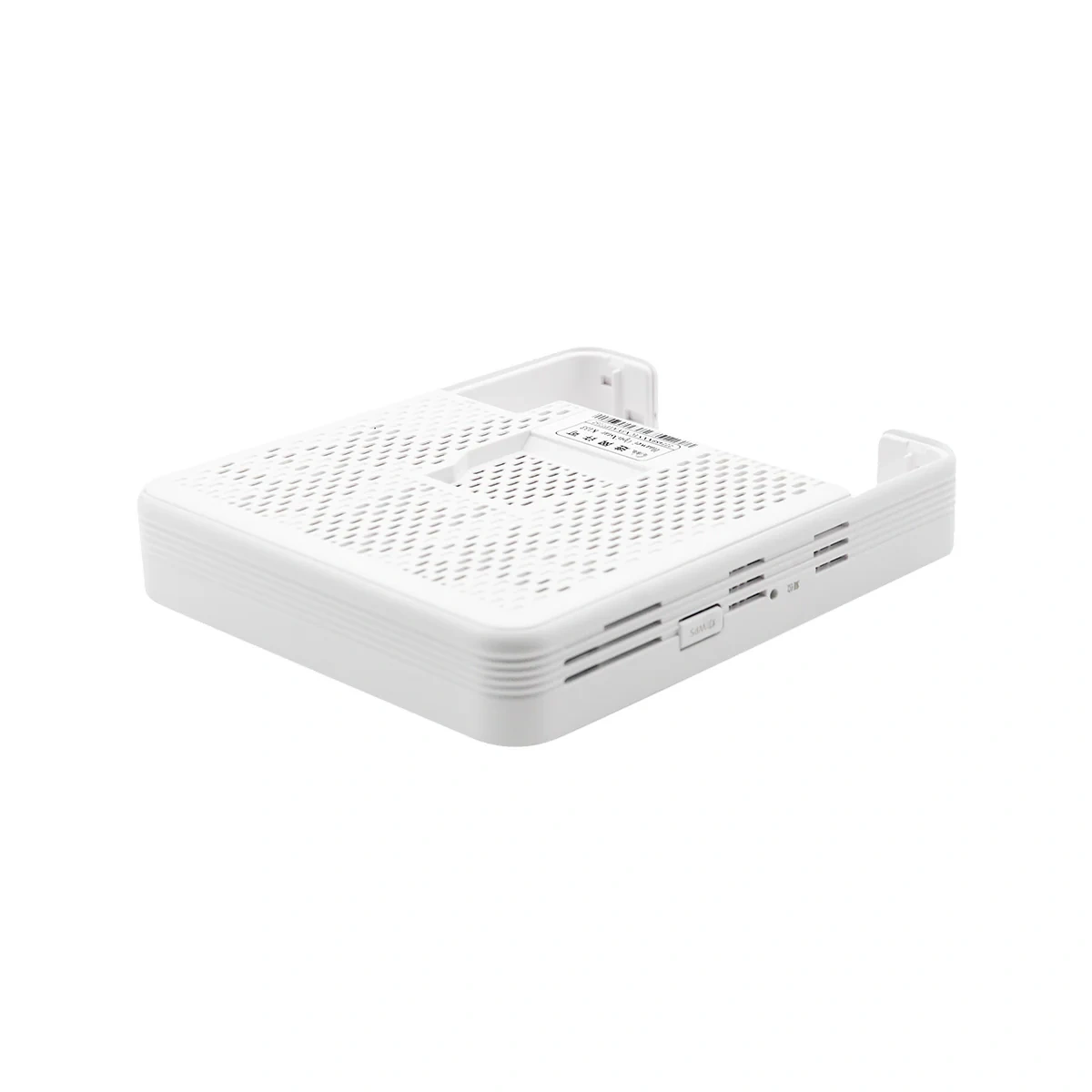

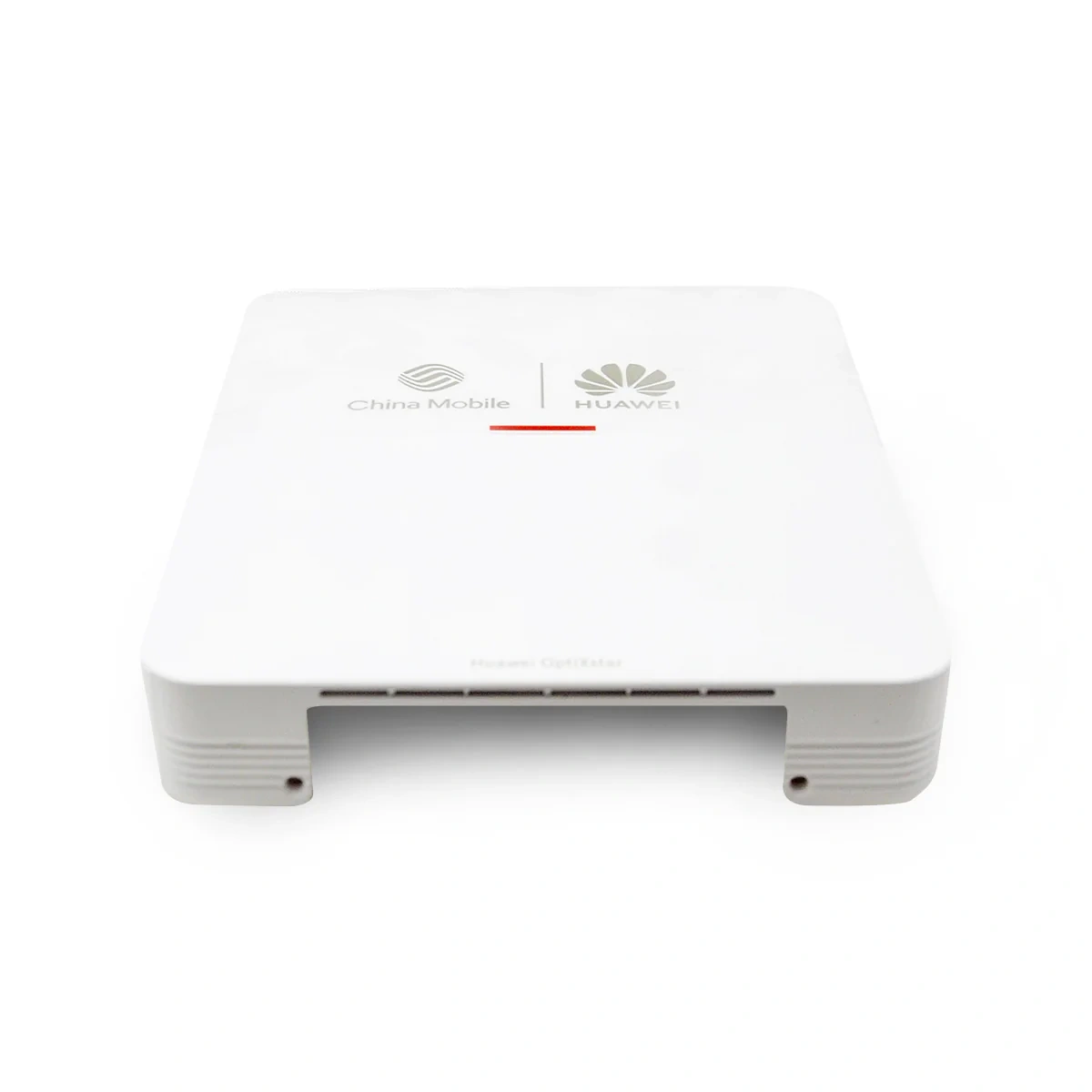

OptiXstar K153 is XG-PON Asymmetric 10G GPON WiFi 6 slave ONT, matched with main ONT OptiXstar V173 to provide Fiber to the Room (FTTR) solution.
OptiXstar K153 is the FTTR of FTTR All-Optical Home Starlight F30 Premium Edition, supporting ultra-gigabit broadband access through optical fiber uplink, providing users with ultra-gigabit dual-band Wi-Fi and gigabit network port.| Item | Parameters |
| NNI | Fiber Uplink |
| UNI | 2*GE+2.4GHz&5GHz Wi-Fi 6 |
| Web UI | YES |
|
Storage |
128 MB Flash，256 MB RAM |
|
Wi-Fi |
• IEEE 802.11 b/g/n/ax(2.4GHz) |
| Optical Interface | • Interface type: SC/UPC • Transmission rate: Downstream rate 2.488Gbit/s, Upstream rate 1.244Gbit/s • Matching with main FTTR, plug and play |
| Gigabit Ethernet port | • MAC address learning • Support 10/100/1000Mbps adaptive |
| Dimensions | 157mm x 130mm x 30mm(without base) |
| (length x width x height) | |
| Weight | About 255g |
| Working environment | Operating temperature: 0°C ~ +40°C |
| Environment humidity: 5% to 95% (noncondensing) | |
| Storage | 256MB Flash，512MB RAM |
| Max. power consumption | 12 W |
| Power specifications | Power adapter input: 170~240V AC, 50/60Hz |
| System power supply: 12V DC, 1 A |
