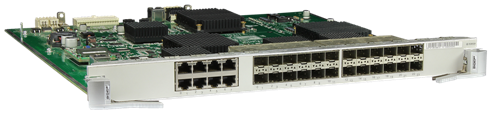

The LE0DG24CEAS0 provides data transmission and switching on sixteen GE optical ports and eight GE combo ports. The combo ports can be configured as either optical ports or electrical ports.
NOTE:
A maximum of twenty-four ports, that is, sixteen GE optical ports and eight combo ports, can work at the same time on the LE0DG24CEAS0.
Synchronous Ethernet
The 100 Mbit/s optical/electrical ports and GE optical ports of the LE0DG24CEAS0 support the synchronous Ethernet function. When a combo port works as a GE electrical port, it does not support the synchronous Ethernet function.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot Swap
The LE0DG24CEAS0 is hot swappable.
Ports on the LE0DG24CEAS0
Attribute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP optical module used.
For details about optical modules supported by the LE0DG24CEAS0 and their attributes, see FE SFP/eSFP Optical Modules, GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE 802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LE0DG24CEAS0
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 2.70 kg (5.95 lb)
Maximum power consumption: 75 W
LE0DG24CEAS0 FAQ
Q1: What are the port types, speeds, and transmission distances of this interface card? Does it support hot-swapping?
A1: It includes 24 10G optical ports (SFP+); transmission distance 0.5km-80km (depending on SFP+ optical modules); supports hot-swapping, ensuring uninterrupted backbone services during maintenance.
Q2: What are the core advantages compared to a 48-port 10G card? Which Huawei switches is it compatible with?
A2: The number of ports is precisely matched to small and medium-sized high-bandwidth scenarios, avoiding resource waste; lower deployment costs; fully compatible with the entire Huawei S9300 chassis series.
Q3: Will there be a performance bottleneck when all 24 ports are working simultaneously? Which optical modules does it support?
A3: It adopts a distributed forwarding architecture + a dedicated 10G chip, ensuring line-speed forwarding without bottlenecks; supports the entire SFP+ series of optical modules, adapting to various short/long-distance scenarios.
