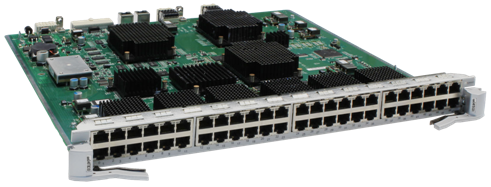

Provides forty-eight 10M/100M/1000M Ethernet electrical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The LE0DG48TBC00 is hot swappable.
Ports on the LE0DG48TBC00
Attribute
Description
Connector type
RJ45
Standards compliance
IEEE 802.3ab
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LE0DG48TBC00
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 2.90 kg (6.39 lb)
Maximum power consumption: 160 W
LE0DG48TBC00 FAQ
Q1: What are the port types, speeds, and transmission distances of the Huawei LE0DG48TBC00? Does it support hot-swapping?
A1: It contains 48 100/1000M Gigabit Ethernet ports (RJ45); transmission distance ≤100m (direct cable connection); supports hot-swapping, ensuring uninterrupted service during maintenance.
Q2: Is this interface card compatible with the Huawei S9303 chassis? What is the maximum number of S9312 units that can be supported?
A2: Fully compatible with the entire S9300 series chassis; a single S9312 unit can support up to 12 units, providing 576 Gigabit Ethernet ports to meet the needs of ultra-large-scale terminal aggregation.
Q3: What are the core advantages compared to a 24-port Gigabit Ethernet card? What types of network cables does it support?
A3: Doubled density, 50% less slot usage; supports multi-rate compatibility for wider adaptability; supports Cat5e and above network cables to meet the general cabling needs of office areas.
