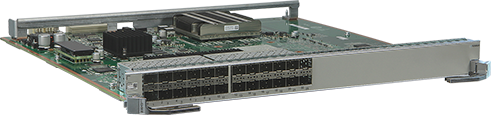

Provides twenty-four GE optical ports for data access and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The LE1D2G24SX5E is hot swappable.
Ports on the LE1D2G24SX5E
Attribute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP optical module used.
For optical modules supported by the LE1D2G24SX5E and their attributes, see FE SFP/eSFP Optical Modules, GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE 802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LE1D2G24SX5E
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 2.82 kg (6.22 lb)
Maximum power consumption: 84 W
LE1D2G24SX5E FAQ
Q1: What are the port types, speeds, and transmission distances of this interface card? Does it support hot-swapping?
A1: It includes 24 Gigabit (100/1000M) optical ports (SFP); transmission distance 0.5km-80km (depending on the SFP optical module); supports hot-swapping, ensuring uninterrupted service during maintenance.
Q2: Compared to a 48-port Gigabit optical port card, what are its core advantages? Which Huawei switches is it compatible with?
A2: The number of ports is precisely matched to small and medium-sized scenarios, avoiding resource waste; low power consumption is more suitable for environments with limited power supply; fully compatible with the entire Huawei S9300 series chassis.
Q3: Does the 95W low power consumption have a real energy-saving effect? Which types of SFP optical modules does it support?
A3: Annual electricity costs are 30% lower than similar high-power cards, with significant long-term advantages; supports a full range of multimode/single-mode, short-distance/long-distance SFP optical modules, adapting to different scenarios.
