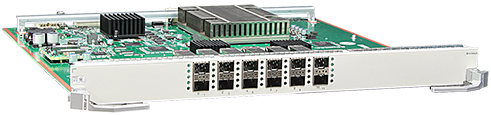

Provides twelve 10GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
Supported
Ports on the LE1D2X12SSC0
Attribute
Description
Connector type
SFP+
Optical attributes
Depend on the SFP optical module used.
For the optical modules supported by the LE1D2X12SSC0 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LE1D2X12SSC0
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 2.8 kg (6.17 lb)
Maximum power consumption: 107.5 W
LE1D2X12SSC0 FAQ
Q1: What are the maximum single-port speed and transmission distance of the Huawei LE1D2X12SSC0 interface card? Does it support hot-swapping?
A1: Maximum single-port speed is 10Gbps, maximum transmission distance is 10km (single-mode) / 0.3km (multi-mode); supports SFP+ module hot-swapping, ensuring uninterrupted service during maintenance.
Q2: Is this interface card compatible with the Huawei S5735-S switch? How many cards can a single S7706 switch support at most?
A2: Fully compatible with the S5735-S switch (requires upgrade to the latest system version); a single S7706 switch supports a maximum of 8 cards, providing 96 10G ports, meeting the expansion needs of small networks with multiple nodes.
Q3: Compared to 8-port/16-port 10G cards and long-range 10G cards, what are the core advantages of the LE1D2X12SSC0?
A3: 50% more ports than an 8-port card, without requiring additional slots; 20% lower cost than a 16-port card, with no port redundancy; 25% lower cost than a long-range card, offering the best cost-performance ratio for short-range, essential scenarios, and suitable for small networks.
