Provides sixteen 10GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping

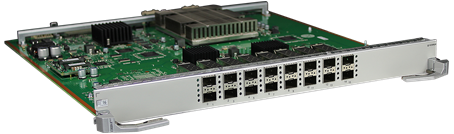

The LE1D2X16SSC2 is hot swappable.
Ports on the LE1D2X16SSC2
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP optical module used.
For the optical modules supported by the LE1D2X16SSC2 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LE1D2X16SSC2
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 2.80 kg (6.17 lb)
Maximum power consumption: 131 W
LE1D2X16SSC2 FAQ
Q1: What are the maximum single-port speed and transmission distance of the Huawei LE1D2X16SSC2 interface card? Does it support hot-swapping?
A1: Maximum single-port speed is 10Gbps, maximum transmission distance is 10km (single-mode) / 0.3km (multi-mode); supports SFP+ module hot-swapping, ensuring uninterrupted service during maintenance.
Q2: Is this interface card compatible with the Huawei S5735-S switch? How many cards can a single S7706 switch support at most?
A2: Fully compatible with the S5735-S switch (requires upgrading to the latest system version); a single S7706 switch supports a maximum of 6 cards, providing 96 10G ports, meeting the needs of large-scale short-distance expansion in small and medium-sized networks.
Q3: Compared to 8-port/24-port 10G cards and long-distance 16-port cards, what are the core advantages of the LE1D2X16SSC2?
A3: Doubles the density of 8-port cards, reduces slot usage by 50% for the same requirements; reduces port waste by 33% and costs 20% less than 24-port cards; costs 25%+ less and consumes 15% less power than long-range 16-port cards, making it more cost-effective for short-range scenarios.
