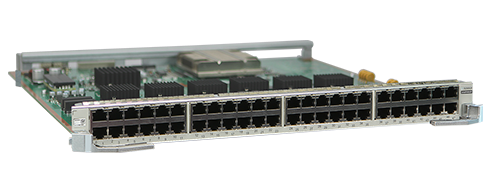

Provides forty-eight GE electrical ports for data access and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The LE1M2G48TX5E is hot swappable.
Ports on the LE1M2G48TX5E
Attribute
Description
Connector type
RJ45
Standards compliance
IEEE 802.3ab
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LE1M2G48TX5E
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 3.27 kg (7.21 lb)
Maximum power consumption: 66 W
LE1M2G48TX5E FAQ
Q1: What are the port types, speeds, and transmission distances of the Huawei LE1M2G48TX5E? Does it support hot-swapping?
A1: It contains 48 100/1000M Gigabit Ethernet ports (RJ45); transmission distance ≤100m (direct cable connection); supports hot-swapping, ensuring uninterrupted service during maintenance.
Q2: What are the practical advantages of its 118W low power consumption? Is it compatible with the S9303 chassis?
A2: It consumes 20% less power than similar high-density cards, reducing annual electricity costs by 30%, making it suitable for power-constrained scenarios; it is fully compatible with the entire S9300 series chassis, requiring no additional upgrades.
Q3: What are the core advantages compared to a 24-port Gigabit Ethernet card? Which network cables does it support?
A3: Doubled density, 50% less slot usage; supports low power consumption and multi-speed compatibility; supports Cat5e and higher specification network cables, meeting conventional cabling needs.
