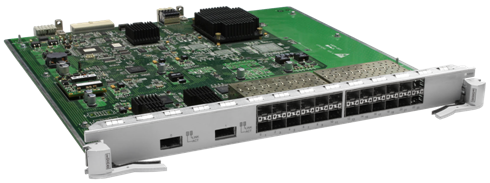

Provides twenty-four GE optical ports and two 10GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Software feature
LAN/WAN interface switching
Hot swapping
The LE0DS24XEA00 is hot swappable.
Ports on the LE0DS24XEA00
Attribute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP optical module used.
For details about the optical modules supported by the LE0DS24XEA00 and their attributes, see FE SFP/eSFP Optical Modules, GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LE0DS24XEA00
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 2.40 kg (5.29 lb)
Maximum power consumption: 65 W
LE0DS24XEA00 FAQ
Q1: What are the port combinations, speeds, and transmission distances of the Huawei LE0DS24XEA00? Does it support hot-swapping?
A1: It includes two 10Gbps ports + 24 1000Mbps gigabit ports; the 10Gbps ports have a maximum transmission range of 10km (single-mode) / 0.3km (multi-mode), and the gigabit ports support corresponding optical module distances; it supports hot-swapping of SFP/XFP modules, ensuring uninterrupted service during maintenance.
Q2: What are the practical advantages of this interface card's ultra-low 65W power consumption? Is it compatible with the S9303 chassis?
A2: The 65W power consumption is 40% lower than similar products, making it suitable for power-constrained scenarios such as solar power supply and remote branches, reducing annual electricity costs by 50%; it is fully compatible with the entire S9300 series chassis, requiring no additional upgrades.
Q3: What are the core advantages compared to ordinary dual-rate aggregation cards? How many S9312 cards can a single unit support at most?
A3: Its core advantages are ultra-low power consumption, SFP/XFP dual-mode compatibility, and LAN/WAN switching, making it suitable for edge nodes and power-constrained scenarios. A single S9312 unit can support up to 12 units, providing 24 10 Gigabit ports and 288 Gigabit ports to meet the needs of large-scale expansion of multiple branches/edge nodes.
