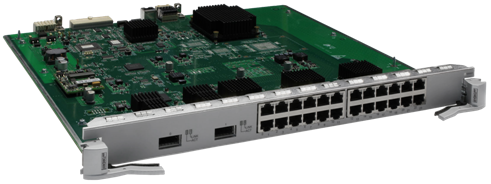

Provides twenty-four GE electrical ports and two 10GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Software feature
LAN/WAN switching
Hot swapping
The LE0DT24XEA00 is hot swappable.
Ports on the LE0DT24XEA00
Attribute
Description
Connector type
RJ45
Standards compliance
IEEE 802.3ab
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Attribute
Description
Connector type
XFP
Optical port attributes
Depend on the XFP optical module used.
For details about the optical modules supported by the LE0DT24XEA00 and their attributes, see 10GE XFP Optical Modules, 10GE-CWDM XFP Optical Modules, and 10GE-DWDM XFP Optical Modules.
Standards compliance
IEEE 802.3ae
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LE0DT24XEA00
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 2.30 kg (5.07 lb)
Maximum power consumption: 53 W
LE0DT24XEA00 FAQ
Q1: What are the port types, speeds, and transmission distances of the Huawei LE0DT24XEA00? Does it support hot-swapping?
A1: It includes two 10Gbps 10 Gigabit optical ports (XFP) + 24 1000Mbps Gigabit Ethernet ports (RJ45); the 10 Gigabit optical ports have a maximum transmission range of 10km (single-mode) / 0.3km (multi-mode); the Gigabit Ethernet ports support direct cable connection (recommended distance ≤100m); it supports hot-swapping of XFP modules, ensuring uninterrupted service during maintenance.
Q2: Which network cables do the Gigabit Ethernet ports (RJ45) support? Is it compatible with the S9303 chassis?
A2: It supports Cat5e/Cat6/Cat6A network cables, meeting the direct connection requirements within 100m in office areas; it is fully compatible with the entire S9300 series chassis, requiring no additional upgrades or modifications.
Q3: What are the core advantages compared to a regular 10 Gigabit card + a separate Gigabit switch? How many S9312 units can a single unit support at most?
A3: Higher integration than standalone devices, reducing the number of devices by 50%, saving data center space; supports LAN/WAN switching + ultra-low power consumption, making it more adaptable to office areas/branch locations; a single S9312 unit can support up to 12 units, providing 24 10 Gigabit optical ports + 288 Gigabit Ethernet ports.
