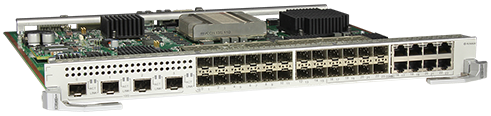

Provides four 10G Ethernet optical ports, sixteen 100/1000M Ethernet optical ports, and eight 10/100/1000M combo ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Software feature
Switching between LAN and WAN ports
Hot swapping
Supported
Ports on the LE1D2S04SEC0
Attribute
Description
Connector type
SFP+
Optical attributes
Depend on the SFP+ to SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ to 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the LE1D2S04SEC0 and their attributes, see 10GE SFP+ Optical Modules, 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules.
Standards compliance
IEEE 802.3ae
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LE1D2S04SEC0
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 2.88 kg (6.35 lb)
Maximum power consumption: 130 W
LE1D2S04SEC0 FAQ
Q1: What are the port combinations, speeds, and transmission distances of the Huawei LE1D2S04SEC0? Does it support hot-swapping?
A1: It includes 4 x 10Gbps ports + 16 x Gigabit ports + 8 x Combo ports; the 10Gbps ports have a maximum transmission range of 10km (single-mode) / 0.3km (multi-mode), while lower-speed ports support corresponding optical module distances; it supports SFP+ module hot-swapping, ensuring uninterrupted service during maintenance.
Q2: How is the LAN/WAN switching function of this interface card used? Is it compatible with the S9303 chassis?
A2: Port LAN/WAN mode switching can be achieved through software configuration, adapting to both intranet interconnection and extranet access needs; it is fully compatible with the entire S9300 series chassis, requiring no additional modifications.
Q3: Compared to ordinary 4-port 10Gbps cards and integrated cards without LAN/WAN functionality, what are its core advantages?
A3: Offers 24 more low-speed ports than a standard 10 Gigabit card, eliminating the need for additional deployment; adaptable to more scenarios than cards without LAN/WAN functionality, saving the need for gateway equipment; highly integrated, reducing slot usage by 75%, resulting in better cost-effectiveness.
