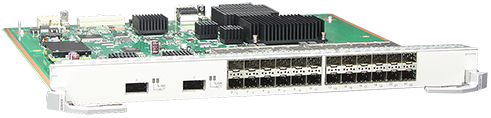

Provides twenty-four GE optical ports and two 10GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Software feature
LAN/WAN interface switching
Hot swapping
Supported
Ports on the LE1D2S24XED0
Attribute
Description
Connector type
SFP
Optical attributes
Depend on the SFP optical module used.
For optical modules supported by the LE1D2S24XED0 and their attributes, see FE SFP/eSFP Optical Modules, GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LE1D2S24XED0
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 2.6 kg (5.73 lb)
Maximum power consumption: 115.7 W
LE1D2S24XED0 FAQ
Q1: What are the port combinations, speeds, and transmission distances of the Huawei LE1D2S24XED0? Does it support hot-swapping?
A1: It includes two 10Gbps ports and 24 1000Mbps Gigabit ports; the 10Gbps ports have a maximum transmission range of 10km (single-mode) / 0.3km (multi-mode), and the Gigabit ports support corresponding optical module distances; it supports hot-swapping of SFP/XFP modules, ensuring uninterrupted service during maintenance.
Q2: How do I use the LAN/WAN switching function of this interface card? Is it compatible with the S9303 chassis?
A2: Switching between LAN (internal network) and WAN (external network) modes can be easily configured via the device software; it is fully compatible with the entire S9300 series chassis, requiring no additional upgrades or modifications.
Q3: What are the core advantages compared to a standard 2-port 10Gbps card and a standalone 24-port Gigabit card?
A3: Higher integration than independent dual-card design, reducing slot usage by 60%; more adaptable to multiple scenarios than cards without LAN/WAN functionality, eliminating the need for gateway equipment; low power consumption design, reducing power supply pressure on branch data centers, and offering better cost performance.
