A 100/1000BASE-T electrical port sends and receives service data at 100/1000 Mbit/s.
In V200R022C10 and later versions, the rate of the first 24 100/1000BASE-T electrical ports can be automatically reduced to 10 Mbit/s.
Ethernet cable

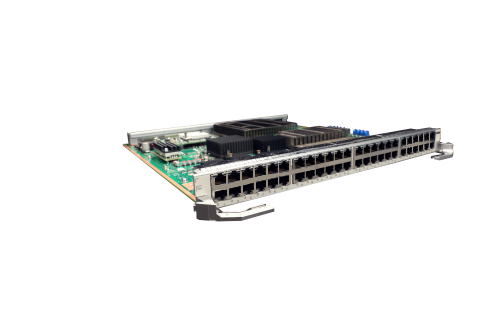

Functions and features of the LST3G48TX6E0
Functions and Features
Description
Basic function
The card provides forty-eight 100/1000BASE-T ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
Supported
Technical specifications of the LST3G48TX6E0
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)
Weight without packaging [kg(lb)]
3.70 kg (8.16 lb)
Weight with packaging [kg(lb)]
5.75 kg (12.68 lb)
Typical power consumption [W]
140 W
Typical heat dissipation [BTU/hour]
477.69 BTU/hour
Maximum power consumption [W]
144 W
Maximum heat dissipation [BTU/hour]
491.34 BTU/hour
Memory
1 GB
LST3G48TX6E0 FAQ
Q1: What are the port types, speeds, and transmission distances of the Huawei LST3G48TX6E0? Does it support hot-swapping?
A1: It contains 48 100/1000M Gigabit Ethernet ports (RJ45), with the first 24 ports supporting 10M adaptive speed; transmission distance ≤100m (direct cable connection); supports hot-swapping, ensuring uninterrupted service during maintenance.
Q2: Is this interface card compatible with the Huawei S9303 chassis? What is the maximum number of S9312 cards that a single unit can support?
A2: Fully compatible with the entire S9300 series chassis; a single S9312 unit can support up to 12 cards, providing 576 Gigabit Ethernet ports to meet the needs of ultra-large-scale terminal aggregation.
Q3: Compared to a 24-port Gigabit Ethernet card, what are its core advantages? What is the purpose of the 1GB memory?
A3: Doubles the density of a 24-port card while reducing slot usage by 50%; 1GB of memory ensures 48-port concurrent forwarding without bottlenecks, avoiding lag during high-density access.
